How to Structure a Program

At a base level, a Python program consists of text files containing Python statements, with one main top-level file, and zero or more supplemental files known as modules.

Here’s how this works. The top-level (a.k.a. script) file contains the main flow of control of your program—this is the file you run to launch your application. The module files are libraries of tools, used to group components used by the top-level file, and possibly elsewhere. Top-level files use tools defined in module files, and modules use tools defined in other modules.

Although they are files of code too, module files generally don’t do anything when run directly; rather, they define tools intended for use in other files. A file imports a module to gain access to the tools it defines, which are known as its attributes—variable names attached to objects such as functions. Ultimately, we import modules and access their attributes to use their tools.

Imports and Attributes

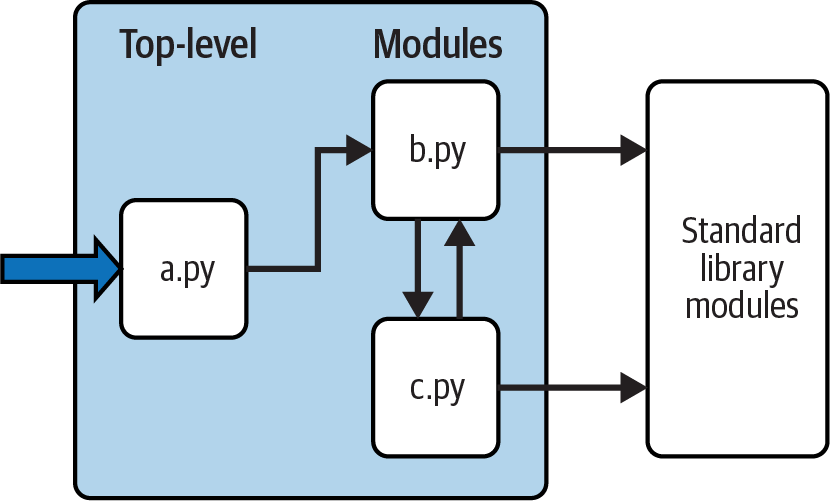

To make this a bit more concrete, Figure 22-1 sketches the structure of a Python program composed of three files: a.py, b.py, and c.py. The file a.py is chosen to be the top-level script file; it will be a simple text file of statements, which is executed from top to bottom when launched. The files b.py and c.py are modules; they are simple text files of statements as well, but they are not usually launched directly. Instead, as explained previously, modules are normally imported by other files that wish to use the tools the modules define.

Figure 22-1. Program architecture in Python

For instance, suppose the file b.py in Figure 22-1 defines a function called job for external use, per Example 22-1 (and ignoring c.py for the moment). As you learned when studying functions in Part IV, b.py will contain a Python def statement to generate the function, which you can later run by passing values in parentheses after the function’s name.

def job(tool):
    print(tool, 'coder')

This function probably seems trivial at this point in this book, but we’re keeping it simple to focus on module basics. Now, suppose a.py wants to use job. To this end, it might contain Python statements like those in Example Example 22-2.

import b
b.job('Python')

The first of these, a Python import statement, gives the file a.py access to everything defined by top-level code—that is, code not nested inside a function or class—within the file b.py. The code import b roughly means:

Load the file b.py (unless it’s already loaded), and give me access to all its attributes through the name b.

To satisfy such goals, import (and, as you’ll see later, from) statements execute and load other files on request. More formally, in Python, cross-file module linking is not resolved until such import statements are executed at runtime; their net effect is to assign module names—simple variables like b—to loaded module objects. In fact, the module name used in an import statement serves two purposes: it identifies the external file to be loaded (by base name b here), but it also becomes a variable assigned to the loaded module.

Similarly, objects defined by a module’s code are also created at runtime, while the import is executing: import literally runs statements in the target file one at a time to create its contents. Along the way, every name assigned at the top level of the file becomes an attribute of the module, accessible to importers. For example, the second of the statements in a.py calls the function job defined in the module b—and created by running its def statement during the import—using object attribute notation. The code b.job means:

Fetch the value of the name job that lives within the object b.

This happens to be a callable function in our example, so we pass a string in parentheses ('Python'). If you run a.py, the words “Python coder” will be printed—hardly a shocker if you’ve read prior chapters, but illustrative.

As we’ve seen, the object.attribute notation is general and pervasive in Python code because most objects have useful attributes that are fetched with the “.” operator. Some attributes reference callable objects like functions that take action (e.g., a salary computer), while others are simple values that denote data (e.g., a person’s name).

Imports are similarly general because any file can import tools from any other file. For instance, the file a.py in Figure 22-1 may import b.py to call its function, but b.py might also import c.py to leverage different tools defined there. In fact, import chains can go as deep as you like: in this example, module a can import b, which can import c, which can import b again, and so on. More realistically, in the benchmarking code of the prior chapter, test scripts imported runner modules, which imported timer modules.

The main point behind all this is that modules (and module packages, described in Chapter 24) are the topmost level of code reuse in Python. Components coded in module files can be used both in your original program, and in any other programs you may write later. For instance, if we later discover that the function b.job in Example 22-1 is widely useful, we can deploy it in completely different programs; all we have to do is import b again from the other programs. While unlikely in this simple demo, modules by nature create packages of reusable tools.

Standard Library Modules

Notice the rightmost portion of Figure 22-1. As we’ve seen along the way, some of the modules that your programs will import are provided by Python itself and are not files you will code.

Python automatically comes with a large collection of utility modules known as the standard library. This collection, hundreds of modules large at last count, contains platform-independent support for common programming tasks: operating system interfaces, object persistence, text pattern matching, network and internet scripting, GUI construction, multithreading, and much more.

None of these tools are part of the Python language itself, but you can use them by simply importing the appropriate modules on any standard Python installation. Because they are standard library modules, you can also be reasonably sure that they will be available and will work portably on most platforms on which you will run Python code.

This book’s examples employ a few of the standard library’s modules—time, timeit, sys, and os in the last chapter’s code, for instance—but we’ll really only scratch the surface of the library’s story here. For a complete look, browse the Python standard library reference manual, available either online at python.org and elsewhere. See Chapter 15 for more on these manuals; the PyDoc tool discussed there also provides library-module info and lists every importable module, including the standard library.

Because there are so many standard library modules, browsing is the best way to get a feel for what tools are available. You can also find tutorials on Python library tools books that cover application-level programming, but the standard manuals are free, viewable in any web browser, and updated each time Python is rereleased. As of Python 3.10, sys.stdlib_module_names also provides a simple list of all standard library modules—importable or not:

$ python3
>>> len(sys.stdlib_module_names)           # That's a lot of modules
300

Step 1: Find It

First, Python must locate the module file referenced by an import statement. Notice that the import statement in the prior section’s example names the file without a .py extension and without its directory path: it just says import b, instead of something like import c:\dir\b.py or similar on Unix. Path and extension details are omitted in imports on purpose; instead, Python uses a standard module search path along with known file types to locate the module file corresponding to an import statement.

Because this is the main part of the import operation that programmers must know about, we’ll return to this topic by itself in a moment.

Step 2: Compile It (Maybe)

After finding a source code file that matches an import statement by traversing the module search path, Python next compiles it to a lower-level form known as bytecode, if necessary. We discussed bytecode in Chapter 2, but it’s a bit richer than explained there.

When you first import a module, Python compiles the module’s .py source code file to bytecode, and saves the bytecode in a file with a .pyc extension if possible. On later program runs, Python will load the bytecode from its .pyc file and skip the compile step, as long as the bytecode file uses a compatible format and was made by the importing Python, and you have not edited and saved the source code file since the bytecode file was made.

Importantly, if you change a module’s source code, its bytecode file will be re-created the next time you run a program that imports the module. This ensures that a module’s bytecode is always in sync with its source, and your Python.

All of this is automatic and can generally be taken on faith by most Python users, but a brief look at the complete story can help make the process less mysterious than it should be. In more detail, bytecode files can be created in two flavors, the first of which is used by default, and the second of which came online in Python 3.7:

• Timestamp-based bytecode files are created by simply importing modules and are the default, original, and most common option. This is the flavor to use if you want imports to be fast, and don’t have atypical needs.

• Hash-based bytecode files are created by using the compileall or py_compile library modules. Once created, the Python command-line switch --check-hash-based-pycs may be used to configure their operation (see Python’s manual for this flag’s three options).

In either model, Python automatically saves enough info to know when a bytecode file must be re-created. Specifically, bytecode files embed a “magic” number identifying the bytecode’s format, along with either the source code file’s last-modified timestamp and size, or a hash value derived from the source code file’s content. Bytecode filenames also include the implementation name and version of the Python that created them.

When a module is imported, Python first checks to see if it was previously imported by the program, and uses the already loaded module if so. Otherwise, it looks for a usable bytecode file corresponding to the module’s source code file, by comparing the info saved with the bytecode file against the current specs of the running Python and the source code file. A .pyc bytecode file is usable if it has the same base name as the source code file, and:

• Uses a compatible format—by checking the “magic” number

• Is up to date with the source code file—by comparing either saved timestamp and size, or hash value

• Was created by the running Python—by inspecting implementation and version tags in the filename

If there is a bytecode file that passes all these checks, it is loaded, and the compilation step is skipped. If not, the source code is compiled to bytecode, and either saved or resaved in a bytecode file with all the noted info.

Programs still run if bytecode files cannot be saved (compiled code is then simply created in memory and discarded on exit), and the -B Python command-line switch can turn off bytecode saves, though it’s rarely needed. When they are saved, bytecode files are written to and loaded from a subdirectory named __pycache__ that’s located alongside their corresponding source code files.

The __pycache__ subdirectory avoids both clutter in your source code folders, and contention and recompiles when multiple Pythons are installed. For example, here’s what happens when the same module file in this chapter’s examples folder is imported by three different Pythons—two CPythons, and the PyPy we used in the preceding chapter (on Windows, use dir and py instead of ls and Python commands here):

$ ls
codefile.py

$ python3.12
>>> import codefile

$ python3.8
>>> import codefile

$ pypy3
>>>> import codefile

$ ls
__pycache__   codefile.py
$ ls __pycache__
codefile.cpython-312.pyc     codefile.cpython-38.pyc     codefile.pypy310.pyc

Technically, the __pycache__ subdirectory was introduced in Python 3.2 and isn’t available earlier, but this book is focused on Python 3.X only, and you’re very unlikely to come across a 3.1 or 3.0 in the wild today.

Also, keep in mind that bytecode compilation happens when a file is being imported. Because of this, you will not usually see a .pyc bytecode file for the top-level file of your program, unless it is also imported elsewhere—only imported files leave behind .pyc files on your machine. The bytecode of top-level files is used internally and discarded; bytecode of imported files is saved in files to speed up future imports.

Top-level files are often designed to be executed directly and not imported at all. Later, though, you’ll see that it is possible to design a file that serves both as the top-level code of a program and as a module of tools to be imported. Such a file may be either executed and imported and does generate a .pyc in the latter role. To learn how this works, watch for the discussion of the special __name__ attribute and __main__ in Chapter 25.

$ python3 -m compileall -b -l .

Step 3: Run It

After compiling or loading the module’s bytecode, the final step of an import operation executes the bytecode. This effectively runs all the statements in the module’s file in turn, from top to bottom, and any assignments made to names during this step generate attributes of the resulting module object. This is how the tools defined by the module’s code are created. For instance, def statements in a file are run at import time to create functions and assign attributes within the module to those functions. The functions can then be called later in the program by the file’s importers.

Because this last import step actually runs the file’s code, if any top-level code in a module file does real work, you’ll see its results at import time. For example, top-level print statements in a module show output when the file is imported. Function def statements (and class statements up later in this book) simply define objects for later use.

As you can see, import operations involve quite a bit of work—they search for files, possibly run a compiler, and run Python code. Because of this, any given module is imported only once per process by default. Future imports skip all three import steps and reuse the already loaded module in memory, per the sys.modules check noted earlier. If you need to import a file again after it has already been loaded (for example, to support dynamic customizations), you can force the issue with an importlib.reload call—a tool we’ll study in the next chapter.

Bear in mind that this process is completely automatic—it’s a side effect of running programs—and most programmers probably won’t care about or even notice the mechanics, apart from faster startups due to skipped compile steps. One part of this process is likely to show up on your radar, though, per the next section’s elaboration.

Search-Path Components

In many cases, you can rely on the automatic nature of the module search path and won’t need to configure this path at all. If you want to be able to import user-defined files across directory boundaries, though, you will need to customize this path. Roughly, Python’s module search path is composed of the concatenation of the following components, some of which are preset for you and some of which you can tailor to tell Python where to look:

1. The home directory of the program

2. Directories listed in PYTHONPATH (if set)

3. Standard library directories and files

4. The site-packages directory of third-party extensions

5. The directories listed in any .pth files (if present)

Ultimately, the concatenation of these five components initializes the built-in sys.path—a changeable list of directory-name strings that are searched from first to last for imported files (we’ll revisit this later in this section). The first, third, and fourth components of the search path are defined automatically. The second and fifth components, though, can be used to extend the path to include your own source code directories. Here’s a rundown on all five:

Home directory (automatic)

Python first looks for the imported file in the code’s “home” directory. The meaning of this entry depends on how you are running the code. When you’re running a program, this entry is the directory containing your program’s top-level script file. When you’re working interactively in a REPL, this entry is instead the directory in which you are currently working (which is why we’ve used this directory for imported files so far). Code run with Python’s -c and -m switches used in earlier chapters also uses the current working directory for the home component.

Because this directory is always searched first, if a program is located entirely in a single directory, all of its imports will work automatically with no path configuration required. On the other hand, because this directory is searched first, its files will also override modules of the same name in directories elsewhere on the path; be careful not to accidentally hide standard library modules this way if you need them in your program, or use package tools you’ll meet later that can partially sidestep this issue with nested folders.

Also remember that this home directory pertains only to the search path used to resolve imports, and does not impact the current working directory used for relative filenames in your script. Pathless files created by a script will still show up where you are when you launch it (specifically, in the folder returned by os.getcwd), not in the script’s home folder at the front of the module search path. Module imports and file access are disjoint ideas.

Any PYTHONPATH directories (configurable)

Next, Python searches all directories listed in your PYTHONPATH environment variable setting, from left to right (assuming you have set this at all: it’s not generally preset for you). In brief, PYTHONPATH is simply a list of user-defined and platform-specific names of directories that contain Python source code or bytecode files. You can add all the directories from which you wish to be able to import, and Python will extend the module search path to include all the directories your PYTHONPATH lists. See Appendix A for tips on setting this variable.

Because Python searches the home directory first, this setting is only important when importing files across directory boundaries—that is, if you need to import a file that is stored in a different directory from the file that imports it. You may need to set your PYTHONPATH variable once you start writing substantial programs and tools, but when you’re first starting out, as long as you save all your module files in the directory in which you’re working (i.e., the home directory) your imports will work without needing to make this setting.

Standard library directories (automatic)

Next, Python automatically searches the directories where the standard library modules are installed on your machine. These include modules coded in Python, and others coded in C. Because these directories are always searched, they normally do not need to be added to your PYTHONPATH (or included in path files, ahead).

The standard library site-packages directory of third-party extensions (automatic)

Next, Python automatically adds the site-packages subdirectory of its standard library to the module search path. By convention, this is the place where most third-party extensions are installed, often automatically by Python’s pip install tool. Because the site-packages install directory of such extensions is always part of the module search path, clients can import the modules of these extensions without any path settings.

Any .pth path-file directories (configurable)

Finally, a lesser-used feature of Python allows users to add directories to the module search path by simply listing them, one per line, in a text file whose name ends with a .pth suffix (for “path”). These path-configuration files are a somewhat advanced installation-related feature; we won’t cover them fully here, but they provide an alternative to PYTHONPATH settings.

In short, text files of directory names dropped in an appropriate directory can serve roughly the same role as the PYTHONPATH environment variable setting. For instance, a file with .pth extension and any name may be placed in the site-packages subdirectory of the installed Python’s standard library to extend the module search path. To locate this subdirectory inspect sys.path for a path ending in site-packages, per its coverage ahead.

When such a file is present, Python will add the directories listed on each line of the file, from first to last, near the end of the module search path list—currently after the site-packages directory as described here. In fact, Python will collect the directory names in all the .pth path files it finds and filter out any duplicates and nonexistent entries. Because they are files rather than shell settings, path files can apply to all users of a given Python, instead of just one user or shell, and may be simpler to set up than environment variables in some contexts.

For more details on this feature, consult Python’s library manual, and especially its documentation for the standard library module site—this module configures the locations of Python libraries and path files, and its documentation describes the expected locations of path files in general. When getting started, though, you may be better served by setting PYTHONPATH, and only if you must import across directories. Path files are used more often by third-party libraries installed in Python’s site-packages.

All that being said, Python’s import mechanism is wildly extensible, and even more convoluted than described here. For example, PYTHONPATH entries may also name ZIP files treated like read-only folders; PYTHONHOME can set standard library locations; a file named with suffix ._pth can fully override sys.path norms; “virtual environments” made with module venv avoid package version clashes by localizing search paths to install folders; relative-import “.” syntax of Chapter 24 constrains module search in packages; and all this has morphed regularly, and may again.

While this book covers common usage, its description is intentionally narrow for space, durability, and audience. You should consult Python’s manuals for more on the imports story if and when unique requirements arise.

Configuring the Search Path

The net effect of all of the foregoing is that both the PYTHONPATH and path file components of the search path allow you to tailor the places where imports look for files. The way you set environment variables and where you store path files varies per platform. For instance, on macOS and Windows, you might set PYTHONPATH to a list of directories separated by colons and semicolons, respectively, like this:

/Users/me/pycode/utilities:/Volumes/ssd/pycode/package1      # Unix paths list
C:\Users\me\pycode\utilities;d:\pycode\package1              # Windows paths list

On Unix systems (e.g., macOS, Linux, and Android), an export shell command sets environment variables for the shell and anything it runs, and can be coded in startup files like ~/.bash_profile for permanence. The following on macOS sets the path to enable imports of modules from the code folders of Chapters 21 and 20 (“…” is snipped text):

$ pwd
/Users/me/…/LP6E/Chapter22
$ export PYTHONPATH=/Users/me/…/LP6E/Chapter21:/Users/me/…/LP6E/Chapter20

$ python3
>>> import pybench, permute
>>> pybench
<module 'pybench' from '/Users/me/…/LP6E/Chapter21/pybench.py'>
>>> permute
<module 'permute' from '/Users/me/…/LP6E/Chapter20/permute.py'>

>>> permute.permute1([1, 2, 3, 4])
>>> pybench.runner([(100, 5, '[x ** 2 for x in range(2 ** 16)]')])

Path syntax like “..” for parent folders also works on PYTHONPATH and is interpreted relative to the current working directory—which is not necessarily the home directory of launched programs, if their top-level scripts live elsewhere. Windows consoles use similar commands (e.g., replace export with set, or use setx for permanence), but Windows users generally set environment variables in Settings; search for the environment-variables GUI there.

Instead of—or in addition to—PYTHONPATH, you might create a text file in your Python install’s site-packages folder named with a .pth extension (e.g., mypath.pth) which looks like this on macOS:

/Users/me/pycode/utilities               # Unix .pth paths file
/Volumes/ssd/pycode\package1             # One path per line

These settings are analogous on all platforms, but the details vary too widely for fully inclusive coverage here. See Appendix A for pointers on extending your module search path with PYTHONPATH on various platforms.

To see how your Python configures the module search path on your platform, and to find the location of its site-packages folder which can host path files, you can always inspect sys.path—the topic of the next section.

The sys.path List

If you want to see how the module search path is truly configured on your machine, print the built-in sys.path list. This list of directory-name strings is the actual module search path within Python; on imports, Python searches each directory in this list from left to right and uses the first file match it finds.

>>> import sys
>>> sys.path
['', '/Users/me/pycode1', '/Users/me/pycode2',
'/Library/Frameworks/Python.framework/Versions/3.12/lib/python312.zip',
'/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12',
'/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12/lib-dynload',
'/Library/Frameworks/Python.framework/Versions/3.12/lib/python3.12/site-packages',
'/Users/me/pycode3']

>>> sys.path.append('/Users/me/pycode4')    # Extend search path for this run
>>> import module                           # All imports search the new dir last

Module File Selection

Besides folders, file types also factor into imports. As noted earlier, filename extensions (e.g., .py) are omitted from import statements by design: Python chooses the first file it can find on the search path that matches the imported name. This need not, however, be a .py source code file or a .pyc bytecode file, as the next section explains.

Path Outliers: Standalones and Packages

Finally, while all of the foregoing reflects normal module usage, some tools bend the rules enough to merit a word in closing. For instance, module search paths are not relevant when you run standalone executables discussed in Chapter 2, which typically embed bytecode within their runnable files, and run without path settings. This is a delivery option outside the scope of this book, but see Appendix A for another overview of options in this domain.

In addition, while it’s syntactically illegal to include path and extension details in a standard import, package imports, covered in Chapter 24, allow import statements to include part of the directory path leading to a file as a set of period-separated names. Even so, package imports still rely on the normal module search path to locate the leftmost directory in a package path (they are relative to a directory in the search path), and cannot make use of any platform-specific path syntax in the import statements (such syntax works only on the search path). As hinted earlier, packages can also use “.” syntax to restrict import searches—but we’ll save this story for Chapter 24.
