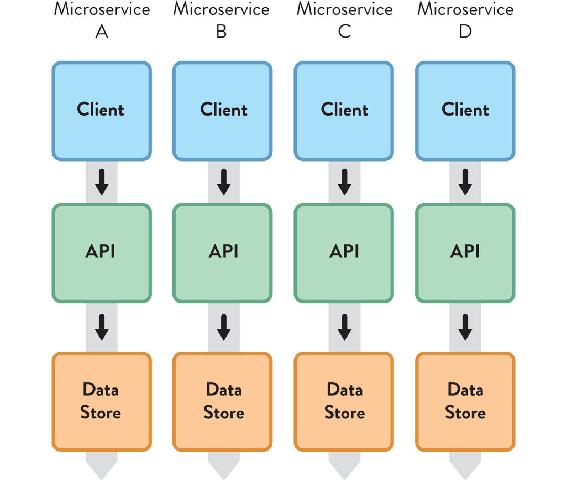

Figure 2.3: Microservices Architecture with Independent Services and Data Stores

A microservices-based architecture with four separate services, each with its own data store, API layer, and front-end client.

By applying the reverse Conway maneuver, we can design our teams to “match” the required software architecture by having separate developers for the client applications and the API, and a database developer within the team rather than separate from it (Figure 2.4, see page 22).

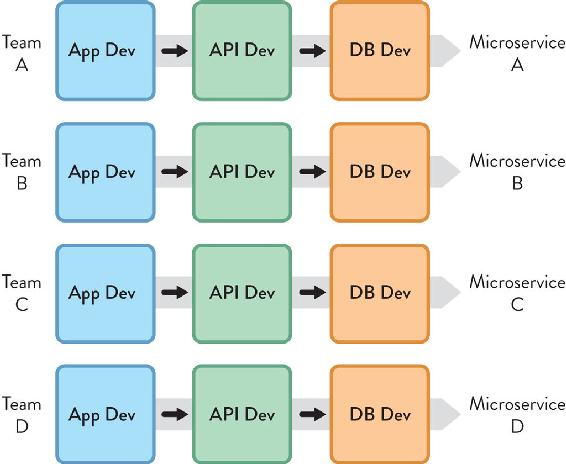

Figure 2.4: Team Design for Microservices Architecture with Independent Services and Data Stores

An organization design that anticipates the homomorphic force behind Conway’s law to help produce a software architecture with four independent microservices. (Again, this is basically the diagram in Figure 2.3 rotated ninety degrees.)

According to Conway’s law, this team design will most “naturally” produce the desired software architecture. If we want our data store to be aligned with the business domain, then we need to avoid having a single “fan-in” database person or team (perhaps by adding a data capability within the application-development team).

Software Architectures that Encourage Team-Scoped Flow

Conway’s law tells us that we need to understand what software architecture is needed before we organize our teams, otherwise the communication paths and incentives in the organization will end up dictating the software architecture. As Michael Nygard says: “Team assignments are the first draft of the architecture.”⁷

For a safe, rapid flow of changes, we need to consider team-scoped flow and design the software architecture to fit it. The fundamental means of delivery is the team (see more in Chapter 3), so the system architecture needs to enable and encourage fast flow within each team. Thankfully, in practice, this means that we can follow proven software-architecture good practices:

• Loose coupling—components do not hold strong dependencies on other components
• High cohesion—components have clearly bounded responsibilities, and their internal elements are strongly related
• Clear and appropriate version compatibility
• Clear and appropriate cross-team testing

At a conceptual level, software architectures should resemble the flows of change they enable; instead of a series of interconnected components, we should be designing flows on top of an underlying platform (we will cover platforms in Chapter 5).

By keeping things team sized, we help to achieve what MacCormack and colleagues call “an ‘architecture for participation’ that promotes ease of understanding by limiting module size, and ease of contribution by minimizing the propagation of design changes.”⁸ In other words, we need a team-first software architecture that maximizes people’s ability to work with it.

Keeping things decoupled and team-scoped should be a key, ongoing organization test because, as John Roberts says in The Modern Firm, “real gains in performance can often be achieved by adopting designs that adhere to [a] disaggregated model.”⁹ These performance gains are partly due to the increased rate of flow of change and partly due to the organization’s ability to change the architecture to suit new contexts.

Don Reinertsen, author of The Principles of Product Development Flow, says “we can also exploit architecture as an enabler of rapid changes. We do this by partitioning our architecture to gracefully absorb change.”¹⁰ Architecture thus becomes an enabler, not a hindrance, but only if we take a team-first approach informed by Conway’s law.

Organization Design Requires Technical Expertise

If we accept that the self-similar force (between architecture and team organization) described by Conway is real, then we also need to accept that anyone who makes decisions about the shape and placement of engineering teams is strongly influencing the software systems architecture. There is a logical implication of Conway’s law here, in the words of Ruth Malan: “if we have managers deciding . . . which services will be built, by which teams, we implicitly have managers deciding on the system architecture.”¹¹

How much awareness does the HR department have about software systems? Does the group of department leaders deciding how to allocate budget across teams know of the likely effects of their choices on the viability of the software architecture?

Given that there is increasing evidence for the homomorphism behind Conway’s law, it is very ineffective (perhaps irresponsible) for organizations that build software systems to decide on the shape, responsibilities, and boundaries of teams without input from technical leaders.

Organization design and software design are, in practice, two sides of the same coin, and both need to be undertaken by the same informed group of people. Allan Kelly’s view of a software architect’s role expands further on this idea:

More than ever I believe that someone who claims to be an Architect needs both technical and social skills, they need to understand people and work within the social framework. They also need a remit that is broader than pure technology—they need to have a say in organizational structures and personnel issues, i.e. they need to be a manager too.¹²

Fundamentally, we need to involve technical people in organization design because they understand key software design concepts, such as APIs and interfaces, abstraction, encapsulation, and so on. Naomi Stanford puts it like this: “departments and divisions, systems, and business processes . . . can be designed independently as long as interfaces and boundaries with the wider organization form part of the design.”¹³

Restrict Unnecessary Communication

One key implication of Conway’s law is that not all communication and collaboration is good. Thus it is important to define “team interfaces” to set expectations around what kind of work requires strong collaboration and what doesn’t. Many organizations assume that more communication is always better, but this is not really the case.

What we need is focused communication between specific teams. We need to look for unexpected communication and address the cause; as Manuel Sosa and colleagues found in their 2004 research into aircraft manufacturing, “managers should focus their efforts on understanding the causes of unaddressed design interfaces . . . and unpredicted team interactions . . . across modular systems.”¹⁴

Mike Cohn, one of the originators of the Scrum product-development approach, asks these questions to assess the health of inter-team communication within an organization: “Does the structure minimize the number of communication paths between teams? . . . Does the structure encourage teams to communicate who wouldn’t otherwise do so?¹⁵

Here, Cohn is addressing the need to ensure that if, logically, two teams shouldn’t need to communicate based on the software architecture design, then something must be wrong if the teams are communicating. Is the API not good enough? Is the platform not suitable? Is a component missing? If we can achieve low-bandwidth communication—or even zero-bandwidth communication—between teams and still build and release software in a safe, effective, rapid way, then we should. This is visualized in Figure 2.5, which is based on Henrik Kniberg’s “Real Life Agile Scaling.”¹⁶
