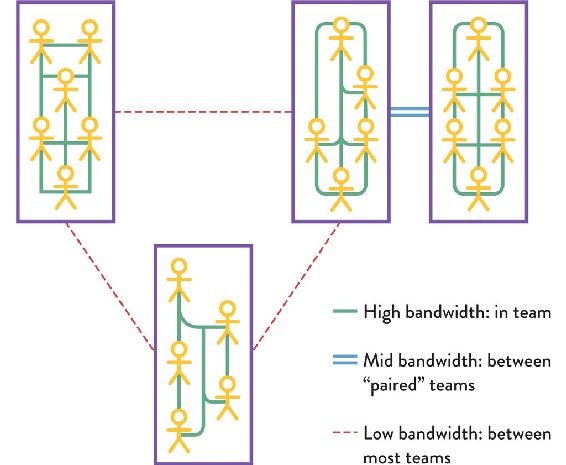

Figure 2.5: Inter-Team Communication

Communication within teams is high bandwidth. Communication between two “paired” teams can be mid bandwidth. Communication between most teams should be low bandwidth.

A simple way to restrict communication is to move two teams to different parts of the office, different floors, or even different buildings. If the teams are virtual or mostly communicate over a chat messenger tool, the volume and patterns of the team-to-team communications can help identify communications that do not match the interactions expected for the software architecture.

Similarly, if a large team regularly deals with two separate areas of the system, it can be useful to split this team into two smaller teams dedicated to each part, although only if it’s the same team members who work on different systems. If the whole team works on more than one part of the system by design (for example, a newer service and an older component), keep the team together. (See Chapter 9 for more on patterns for long-term “continuity of care” for older software systems.)

Sometimes, two or more teams may feel the need to communicate on software purely because the code for their parts of the system is in the same version-control repository or is even part of the same application or service, whereas logically, it should be separate. In these cases, we need to use “fracture plane” patterns (which will be discussed in Chapter 6) to split up the software into smaller chunks that can live in separate repositories.

Everyone Does Not Need to Communicate with Everyone

With open-plan offices and, particularly, with ubiquitous, instant communication via chat tools, anyone can communicate with anyone else. In this situation, one can accidentally fall into a pattern of communication and interaction where everyone needs to communicate with everyone else (putting the onus on the consumer to distill what is relevant) in order to get work done. From the viewpoint of Conway’s law, this will drive unintended consequences for the software systems, especially a lack of modularity between subsystems.

If the organization has an expectation that “everyone should see every message in the chat” or “everyone needs to attend the massive standup meetings” or “everyone needs to be present in meetings” to approve decisions, then we have an organization design problem. Conway’s law suggests that this kind of many-to-many communication will tend to produce monolithic, tangled, highly coupled, interdependent systems that do not support fast flow. More communication is not necessarily a good thing.

Beware: Naive Uses of Conway’s Law

There is a danger of misinterpreting Conway’s law and creating a set of teams that appear to map well to the required architecture but, in fact, work strongly against fast flow. Furthermore, the relationship between cross-team tools and communication is often missed or ignored, but such tooling can be a powerful driver of self-similar design. In this section, we identify some potential pitfalls resulting from the naive application of Conway’s law.

Tool Choices Drive Communication Patterns

The way in which teams use software communication tools can have a strong influence on communication patterns between teams. A common problem in organizations struggling to build and run modern software systems is a mismatch between the responsibility boundaries for teams or departments and those for tools. Sometimes an organization has multiple tools when a single one would suffice (providing a common, shared view). Other times, a single tool is used and problems arise because teams need separate ones.

As we’ve seen, Conway’s law tells us that an organization is constrained to produce designs that are copies of its communication structures. We therefore need to be mindful of the effect of shared tools on the way teams interact. If we want teams to collaborate, then shared tools make sense. If we need a clear responsibility boundary between teams, then separate tools (or separate instances of the same tool) may be best.

Let’s say we need a software development team to work closely with the IT operations team; having separate ticketing or incident-management tools for the two teams will likely result in poor inter-team communication. To help these teams collaborate and communicate, we should choose a tool that can meet the needs of both groups. Similarly, having a special “production only” tool that is limited to teams with security access to production should be avoided. If that tool interacts with or measures the software being built, then the restricted access to the tool is likely to drive a communication gap between teams with access and teams without. The tool can help or hinder communication flow and, therefore, the effective interaction of teams.

   TIP

Make information visible while keeping security in place.

Log-aggregation tools provide a simple solution for application teams that need to consult production logs (for debugging purposes, for instance) but do not have access to production environments. Such tools ship all the logs to an external location, where they get processed and indexed together (and anonymized if need be), making it faster to search and correlate events than individual logs. Teams get access to the information they need while production security controls remain intact (other than ensuring logs are being transferred in a secure fashion).

However, when responsibility boundaries between two teams do not overlap (when the teams have very distinct roles without much need to collaborate), we will not get much value from insisting on the same incident-tracking tool or even the same monitoring tool for the two teams, particularly if one of the teams is outside the organization providing a service.

In summary, don’t select a single tool for the whole organization without considering team inter-relationships first. Have separate tools for independent teams, and use shared tools for collaborative teams.

Many Different Component Teams

Some organizations have naively used Conway’s law to create many different component teams focused on building small parts of systems. Component teams—better called complicated-subsystem teams (see Chapter 5)—are occasionally needed but only for exceptional cases, where very detailed expertise is required. Generally speaking, we need to optimize for fast flow, so stream-aligned teams are preferred. We will cover these aspects more in Chapter 5.

Repeated Reorganizations that Create Fiefdoms or Reduce Headcount

The underlying aim of many “reorganizations” in the past was to reduce staff or create fiefdoms of power for managers and leaders. When we change the organization structure to accommodate Conway’s law, we are aiming to improve the space (context, constraints, etc.) in which organizations search for solutions with software systems. These two approaches are mutually exclusive. With software and “product” companies, structure should anticipate product architecture. Combined with a team-first approach, regular reorganizations for management reasons should become a thing of the past.

To put this in the strongest way, regular reorganizations for the sake of management convenience or reducing headcount actively destroy the ability of organizations to build and operate software systems effectively. Reorganizations that ignore Conway’s law, team cognitive load, and related dynamics risk acting like open heart surgery performed by a child: highly destructive.

Summary: Conway’s Law Is Critical for Efficient Team Design in Tech

Conway’s law tells us that an organization’s structure and the actual communication paths between teams persevere in the resulting architecture of the systems built. They void the attempts of designing software as a separate activity from the design of the teams themselves.

The effects of this simple law are far reaching. On one hand, the organization’s design limits the number of possible solutions for a given system’s architecture. On the other hand, the speed of software delivery is strongly affected by how many team dependencies the organization design instills.

Fast flow requires restricting communication between teams. Team collaboration is important for gray areas of development, where discovery and expertise is needed to make progress. But in areas where execution prevails—not discovery—communication becomes an unnecessary overhead.

One key approach to achieving the software architecture (and associated benefits like speed of delivery or time to recover from failure) is to apply the reverse Conway maneuver: designing teams to match the desired architecture. We provided a simple example where an organization could avoid a monolithic database by embedding database skills in the application team, so that they had sufficient autonomy to maintain a separate data store (perhaps relying on a centralized DBA team for recommendations on database design or synchronization with other databases).

In short, by considering the impact of Conway’s law when designing software architectures and/or reorganizing team structures, you will be able to takeadvantage of the isomorphic force at play, which converges the software architecture and the team design.
