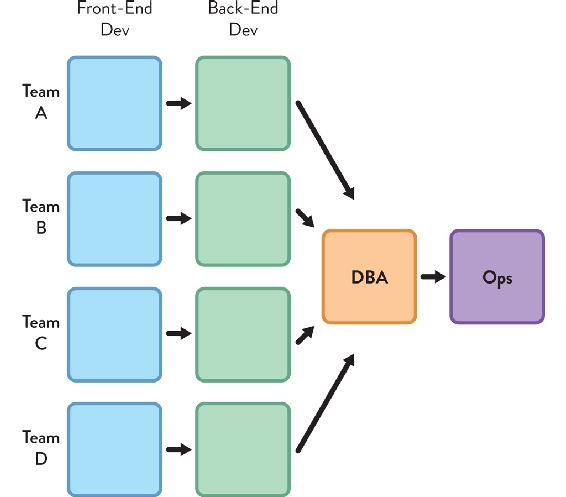

Figure 2.1: Four Teams Working on a Software System

Four separate teams consisting of front-end and back-end developers work on a software system. Front-end devs communicate only with back-end devs, who communicate with a single DBA for the database changes.

According to Conway’s law, the software architecture that naturally emerges from such a team design would have separate front-end and back-end components for each team, and a single, shared core database (Figure 2.2, see page 20).

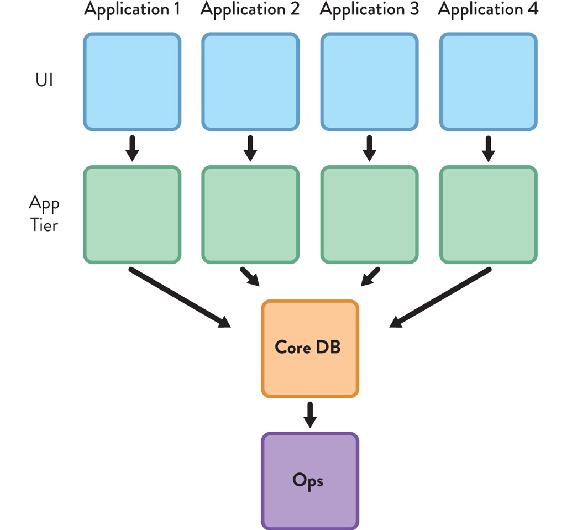

Figure 2.2: Software Architecture from Four-Team Organization

Four separate applications, each with a separate user interface (UI) and a back-end application tier that communicate with a single shared database. This reflects and matches the team communication architecture from Figure 2.1; the diagram has simply been rotated ninety degrees.

In other words, the use of a shared DBA team is likely to drive the emergence of a single shared database; and the use of separate front-end and back-end developers is likely to drive a separation between UI and app tiers, due to the nature of the communication taking place. If this single shared database and four, two-tier apps is the software architecture we want, then all is well.

However, if we do not want a single shared database, we have a problem. The homomorphic force identified by Conway’s law is exerting a strong pull on the “natural” software architecture to emerge from the current organization design and communication paths.

For example, let’s say that we want to use a microservices architecture for some new cloud-based software systems, where each separate service is independent and has its own data store (Figure 2.3, see page 21).
